- Adaptive control of dimming function
- Functions selection via dip switches
- Channel setting via rotary switches
- Emergency function in absence of signal
- Offset function
- Test mode
- Selectable logarithmic or linear curve
- Channel coupling function
- Integrated selectable signal terminator
Description
ROTARY SWITCHES for channel address setting and test mode, DIP-SWITCHES for function selection, DIP-SWITCHES for function selection and removable terminals.
Applications

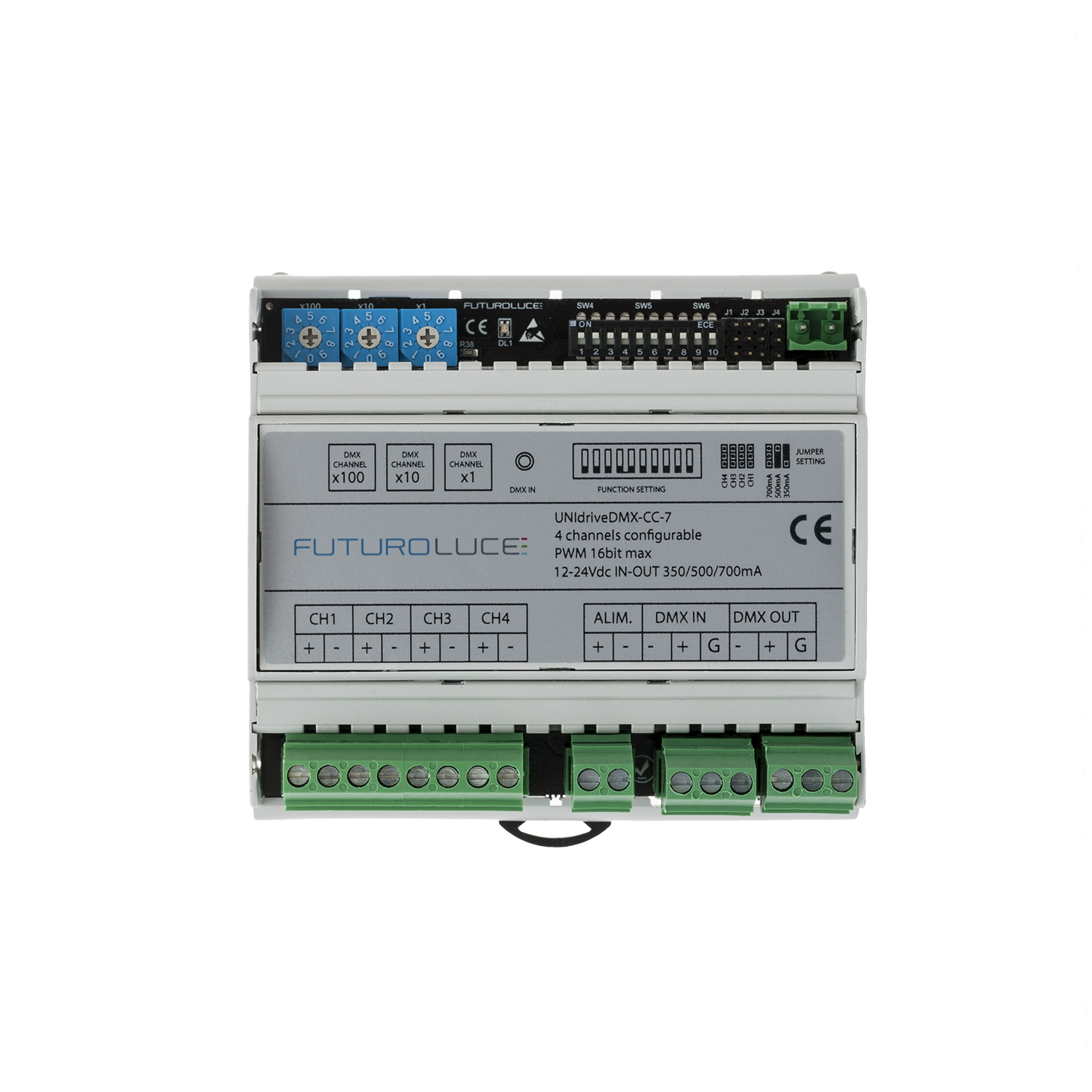

The UNIdrive module represents the state of the art of drive devices for LED systems, whether in voltage or direct current, as it guarantees control with resolution up to 16 bit. It enables the control of 4 channels, managed independently or grouped simply via a hardware setting. It incorporates advanced selective functions by means of dedicated dip switches, such as the emergency function in the absence of signal, level offset, test mode, drive with logarithmic or linear curve, 2 drive frequency modes, DMX line terminator. The start channel setting is done via convenient rotary switches.
The signal presence LED allows for rapid diagnostics. The 4 terminal blocks of the outputs permit correct distribution of the load and facilitate the connection of several lines. The key function of this device, selected via a dedicated dip switch and deactivated in the event of instantaneous transitions of state (on/off), is the possibility of having adaptive control, which enables smooth operation without flickering during the dimming stage, especially corresponding to very fast fade outs.
